Menge | Preis |
1 - 4 | 10,99€ |
5 - 9 | 10,79€ |
10 - 19 | 10,59€ |
20 + | 10,39€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
10,99€
In stock
Menge | Preis |
1 - 4 | 10,99€ |
5 - 9 | 10,79€ |
10 - 19 | 10,59€ |
20 + | 10,39€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

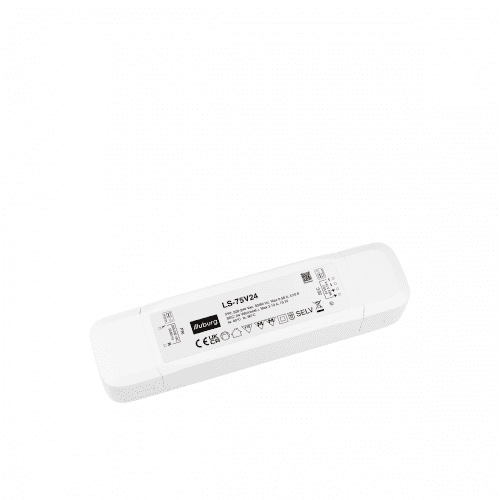

LED Trafo 24V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
LS-75V24E
LED power supply for 24 Vdc constant voltage
3.13 A (75 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | >0.95 230 Vac |
Input Current | 0.49 A max. |
No-load loss | ≤0.5 W |
Inrush Current | 44 A max. |
Output Voltage | 24 Vdc |
Output Current | 0…3.13 A |
Output Power (nominal) | 75 W max. |
Efficiency | ≥ 89 % |
Life Time | > 50,000 h |
Dimmable | No |
LED Trafo 24V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Permitted rel. Humidity | 20…90 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 105…150 % |
Overvoltage protection | Yes * >25.2 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 24V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-section, input side | 0.5…1.5 mm² |
Cable Cross-section, output side | 0.5…1.5 mm² |
Cable Preparation length, input side | 7.0…9.0 mm |
Cable Preparation length, output side | 7.0…9.0 mm |
Dimension
Connection
Connection instructions
LED power supply LS-75V24: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), not dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 75 W, parallel connection possible. Our products can be used with full load.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.
Assembly: dimensions 187 x 45 x 31 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by spring loaded clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE, furniture approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage flicker-free 75w 75 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 75W constant voltage.
