LS-40C700-D3 (700mA 40W)

11,97

In stock

(0 customer reviews)
MengePreis
1 - 411,97
5 - 911,69
10 - 1911,49
20 +11,29



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

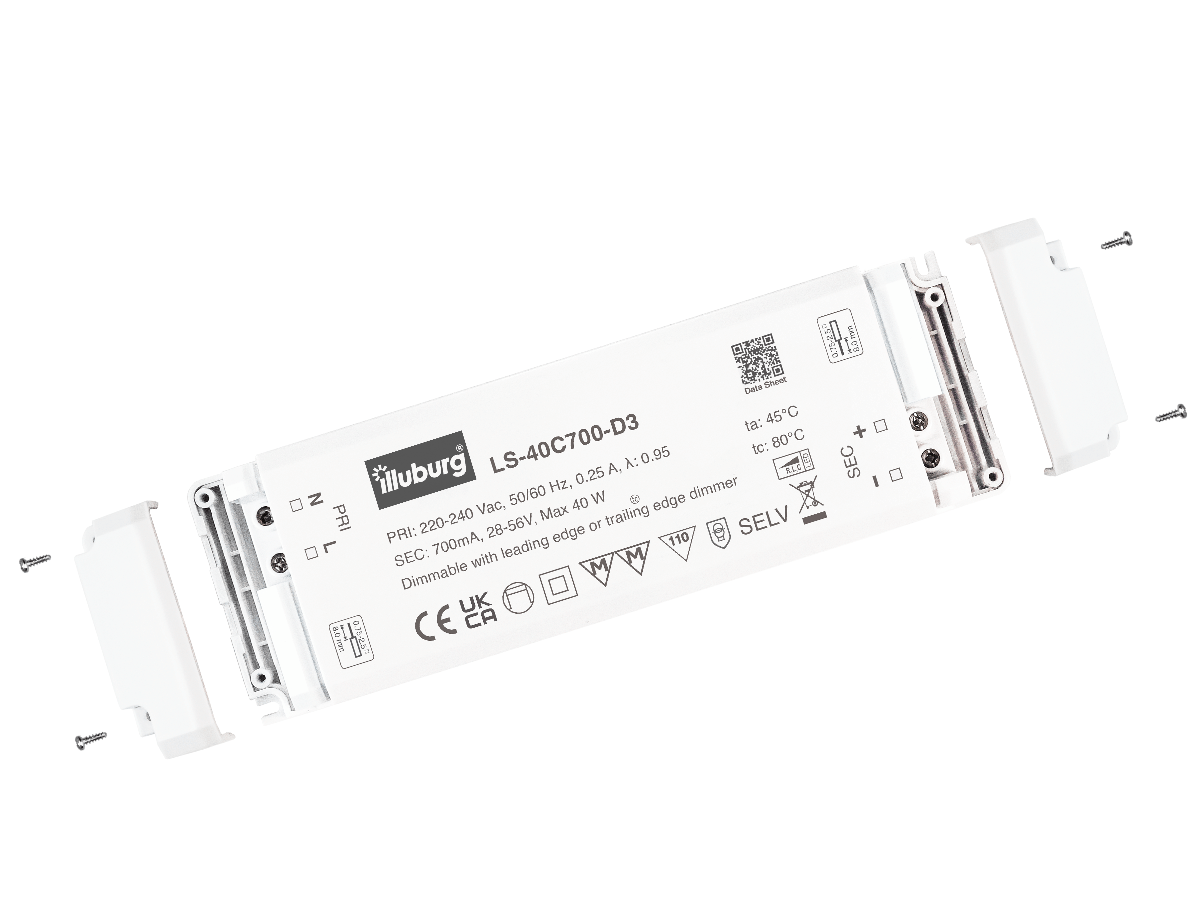

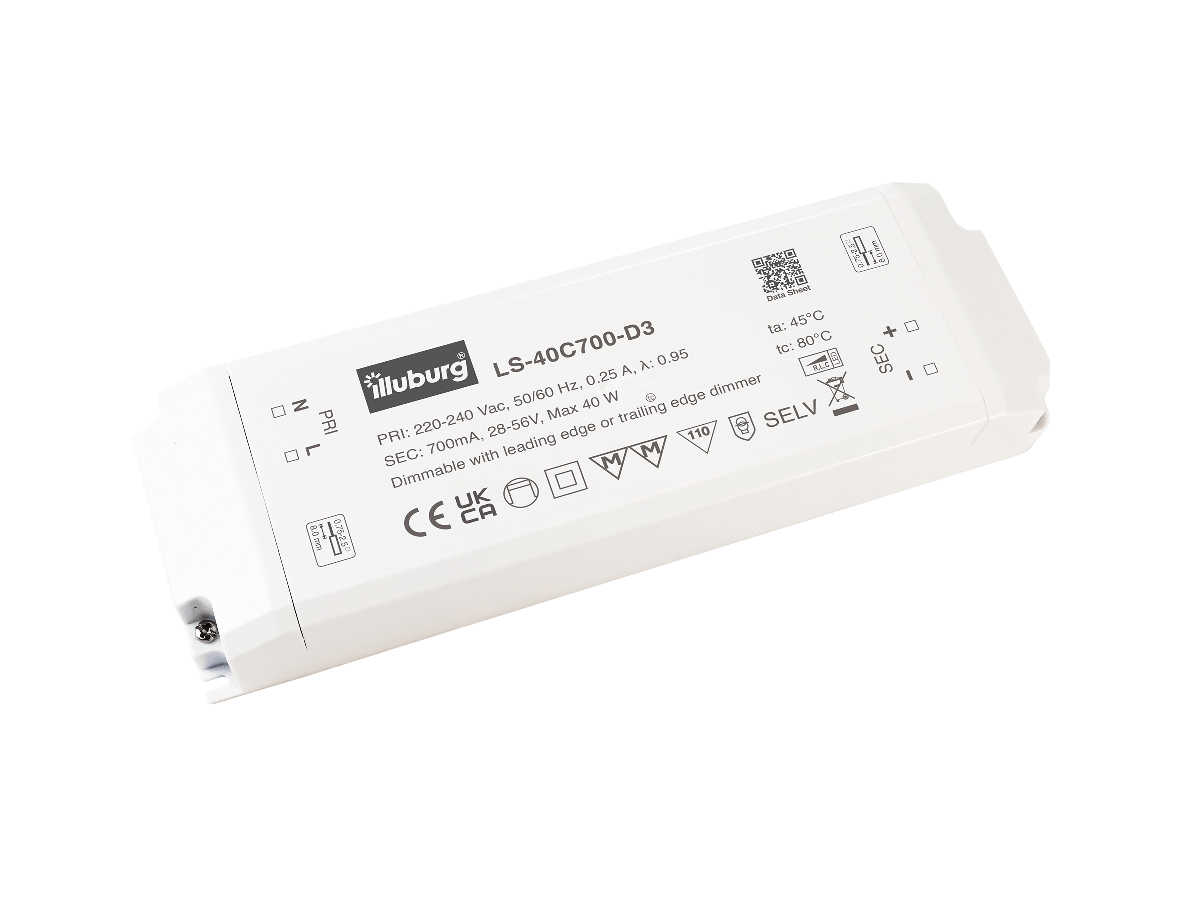

LS-40C700-D3

LED power supply for 700 mA constant current
28…56 Vdc, 19.6…39.2 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable

Electrical Data

Input Voltage (nominal)220…240 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.95    Full load
Input Current0.3 A max.
Inrush Current5 A max.
Output Voltage28…56 Vdc
Output Current700 mA
Output Power (nominal)19.6…39.2 W
Efficiency≥ 86 %    Full load
Life Time> 50,000 h
Dimming ModeTRIAC (leading & trailing edge)



Operating Condition

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)80 °C
Permitted rel. Humidity5…85 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
No-Load ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 62493, EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Type of InstallationIndependent installation
Type of ConnectionScrew terminal
Cable Cross-Section, input side0.75…2.5 mm²
Cable Cross-Section, output side0.75…2.5 mm²
Cable Preparation Length, input side8 mm
Cable Preparation Length, output side8 mm



Dimension



Connection
