300…350mA const., 4.5…14.7W, IP20, 49x45x23mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 7,89€ |
| 5 - 9 | 7,69€ |
| 10 - 19 | 7,49€ |
| 20 + | 7,29€ |
CSU-15C300
7,89€
Out of stock
Out of stock
Description
LED Trafo 300/350mA 15W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

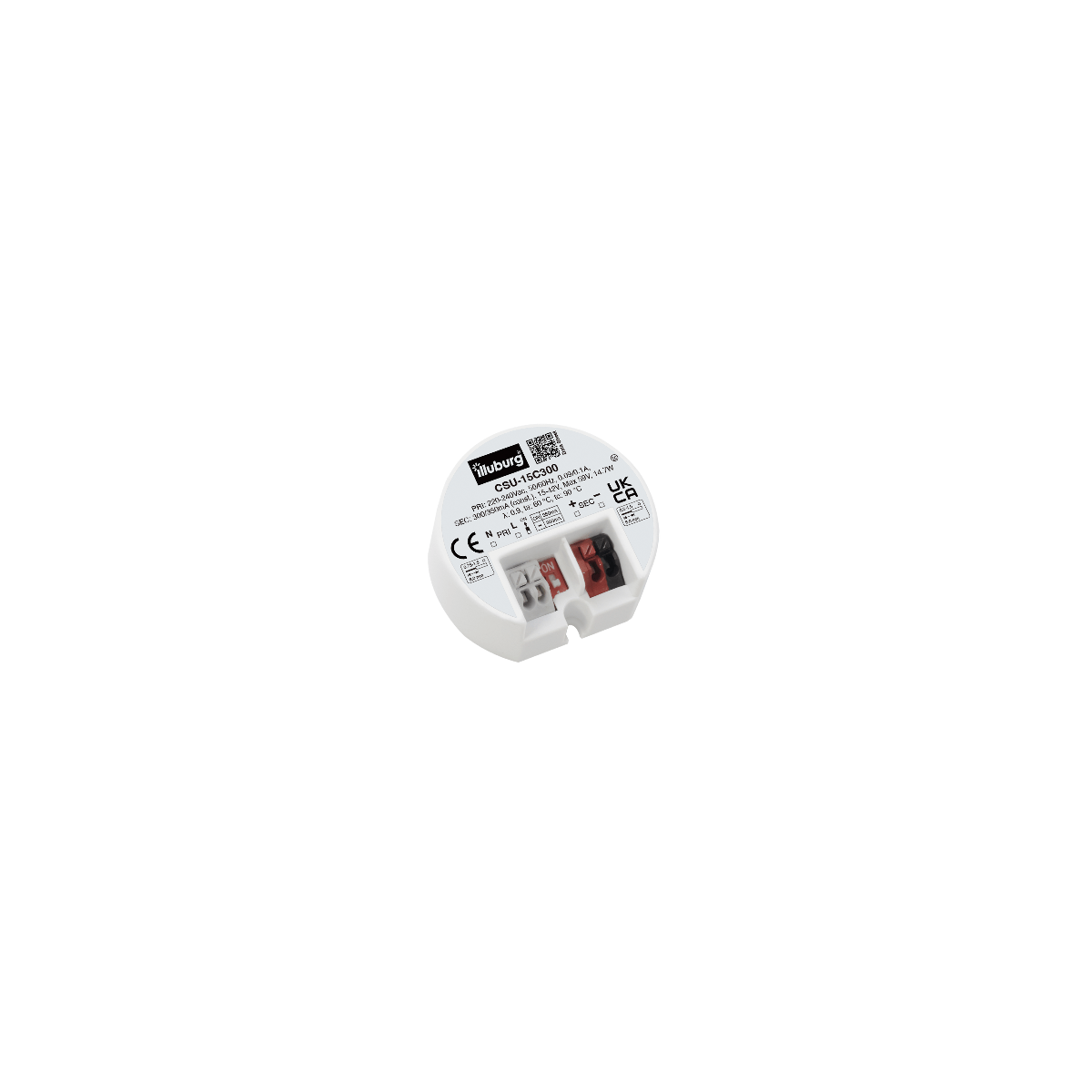

CSU-15C300
LED power supply for 300/350 mA constant current
15…42 Vdc, 4.5…14.7 W, IP20, built-in installation, non-dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.9 Full Load, 230 Vac |
| Input Current | 0.1 A max. |
| Inrush Current | 23 A max. |
| Leakage Current | < 250 μA |
| Output Voltage | 15…42 Vdc |
| Output Current | 300 mA, 15…42 V, 4.5…12.6 W 350 mA, 15…42 V, 5.25…14.7 W |
| Efficiency | ≥ 83 % |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 10…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
LED Trafo 300/350mA 15W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| No-load Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of installation | Built-in installation |
| Type of connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
LED Trafo 300/350mA 12W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Dimension
Connection
