| Menge | Preis |
| 1 - 4 | 9,45€ |
| 5 - 9 | 9,29€ |
| 10 - 19 | 9,19€ |
| 20 + | 9,09€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
LS-25C350-D3 (350mA 25W)
9,45€
In stock
In stock
Description

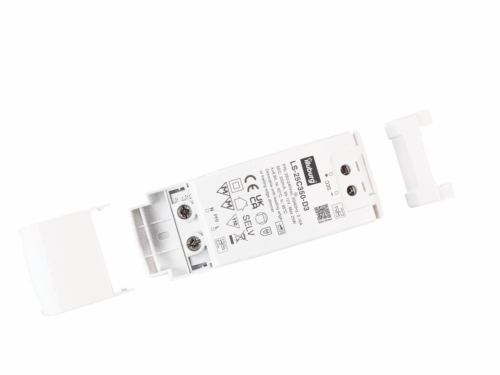

LS-25C350-D3
LED power supply for 350 mA constant current
36…72 Vdc, 12.6…25.2 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full load |
| Input Current | 0.16 A max. |
| Inrush Current | 5 A max. |
| Output Voltage | 36…72 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 12.6…25.2 W |
| Efficiency | ≥ 84 % Full load |
| Life Time | > 50,000 h |
| Dimming Mode | TRIAC (leading & trailing edge) |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| No-Load Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.75…2.5 mm² |
| Cable Cross-Section, output side | 0.75…2.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
Dimension
Connection
