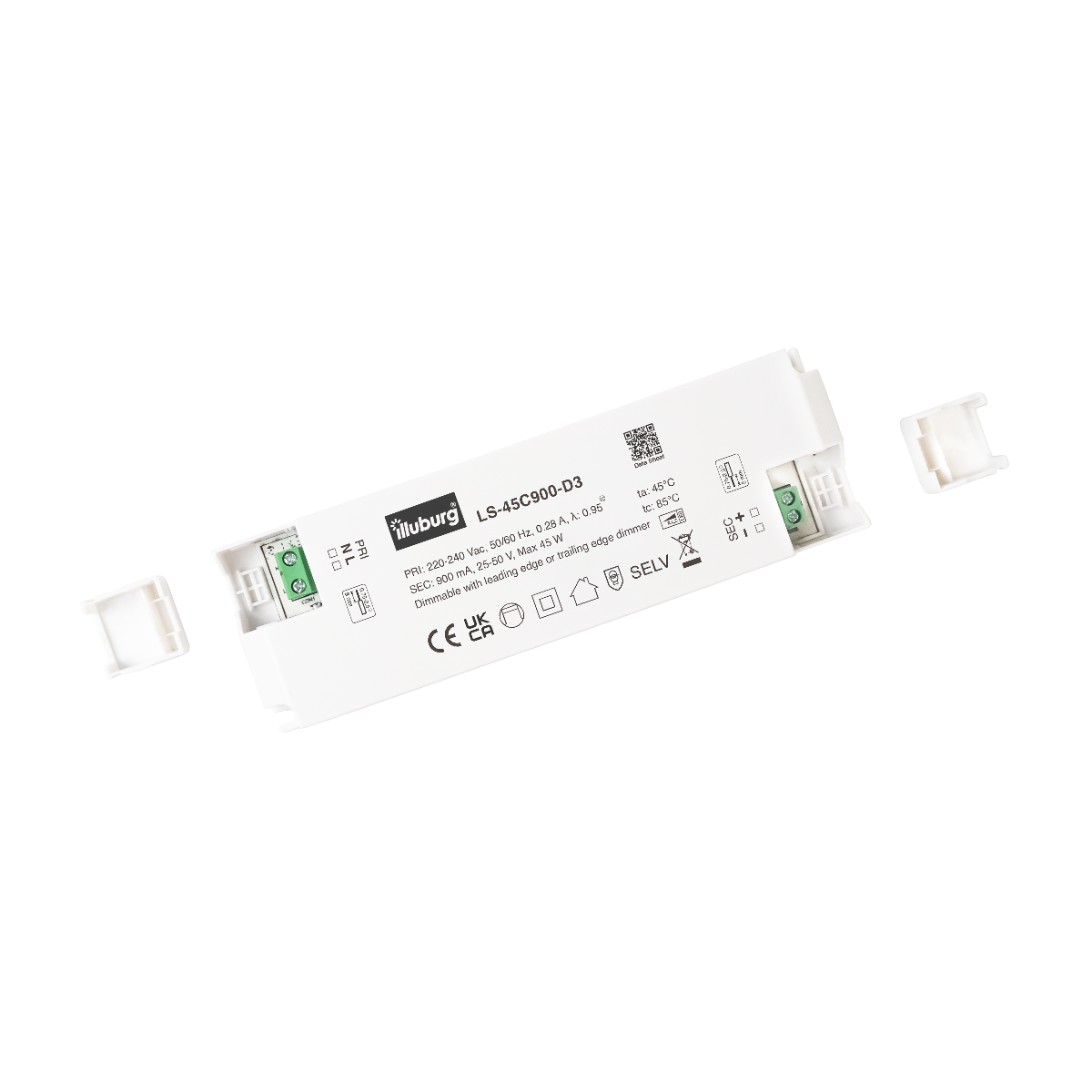

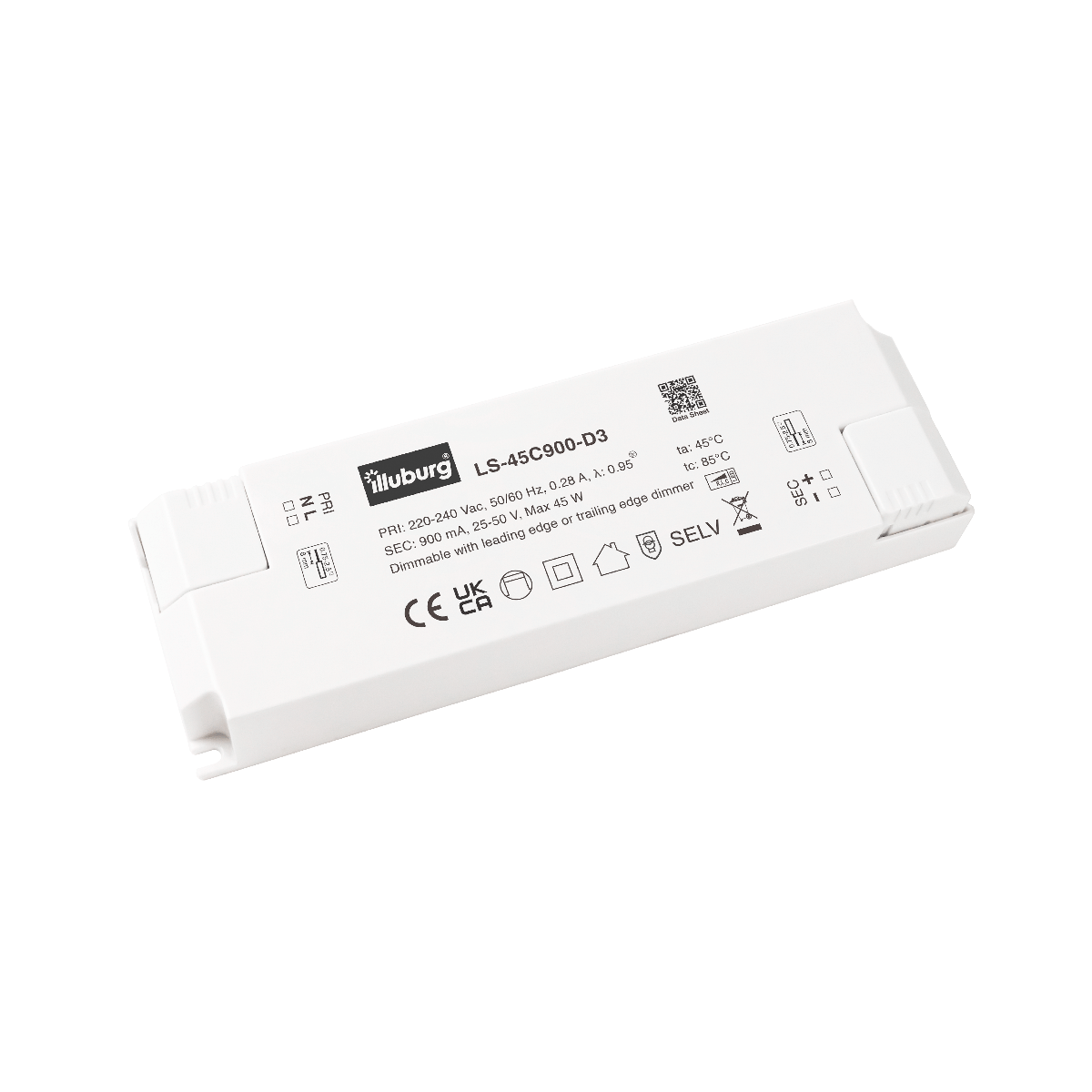

LS-45C900-D3
LED power supply for 900 mA constant current
25…50 Vdc, 22.5…45 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 Full load |
Input Current | 0.28 A max. |
Inrush Current | 5 A max. |
Output Voltage | 25…50 Vdc |
Output Current | 900 mA |
Output Power (nominal) | 22.5…45 W |
Efficiency | ≥ 86 % Full load |
Life Time | > 50,000 h |
Dimming Mode | TRIAC (leading & trailing edge) |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage Protection | Yes * > 57 Vdc |
No-Load Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-Section, input side | 0.75…2.5 mm² |
Cable Cross-Section, output side | 0.75…2.5 mm² |
Cable Preparation Length, input side | 6…8 mm |
Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
