| Menge | Preis |
| 1 - 4 | 11,97€ |
| 5 - 9 | 11,69€ |
| 10 - 19 | 11,49€ |
| 20 + | 11,29€ |
Preis auf Anfrage bei Bestellmenge ab 50 Stück
Preis zzgl. MwSt., zzgl. Versandkosten
Lieferzeit: 1-2 Werktage
LS-40C350-D3 (350mA 37W)
14,99€
Out of stock
Out of stock
Description

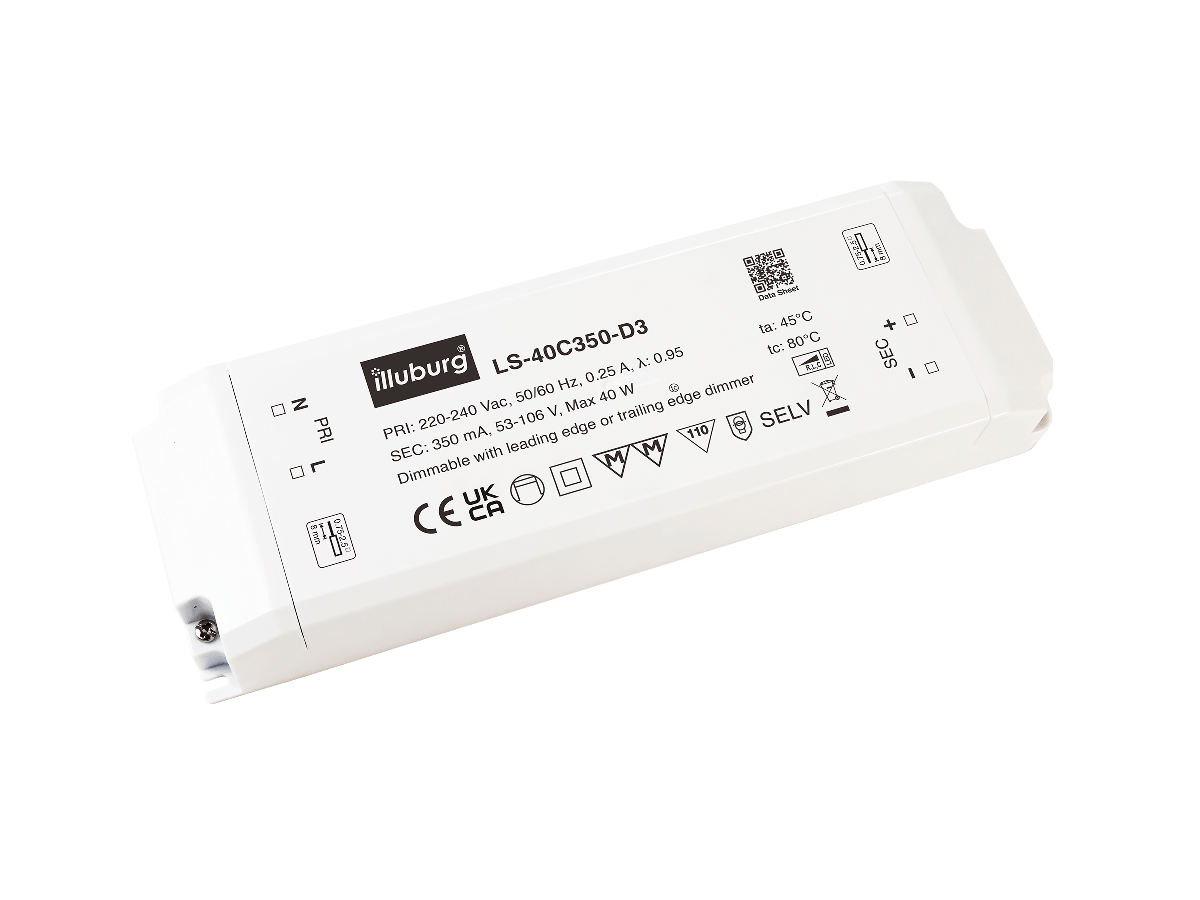

LS-40C350-D3
LED power supply for 350 mA constant current
53…106 Vdc, 18.6…37.1 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Electrical Data
| Rated Input Voltage | 220…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full load |
| Input Current | 0.25 A max. |
| Inrush Current | 5 A max. |
| Output Voltage | 53…106 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 18.6…37.1 W |
| Efficiency | ≥ 86 % Full load |
| Life Time | > 50,000 h |
| Dimming Mode | TRIAC (leading & trailing edge) |
| Dimming range | 1…100 % |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| No-load Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.75…2.5 mm² |
| Cable Cross-Section, output side | 0.75…2.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension

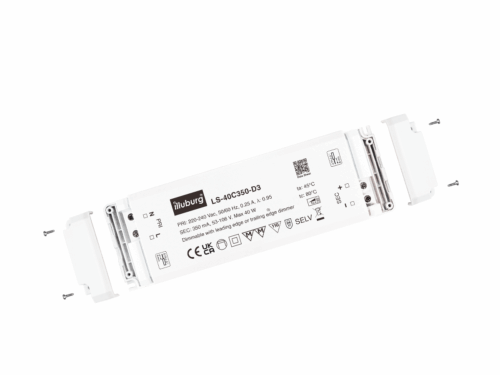

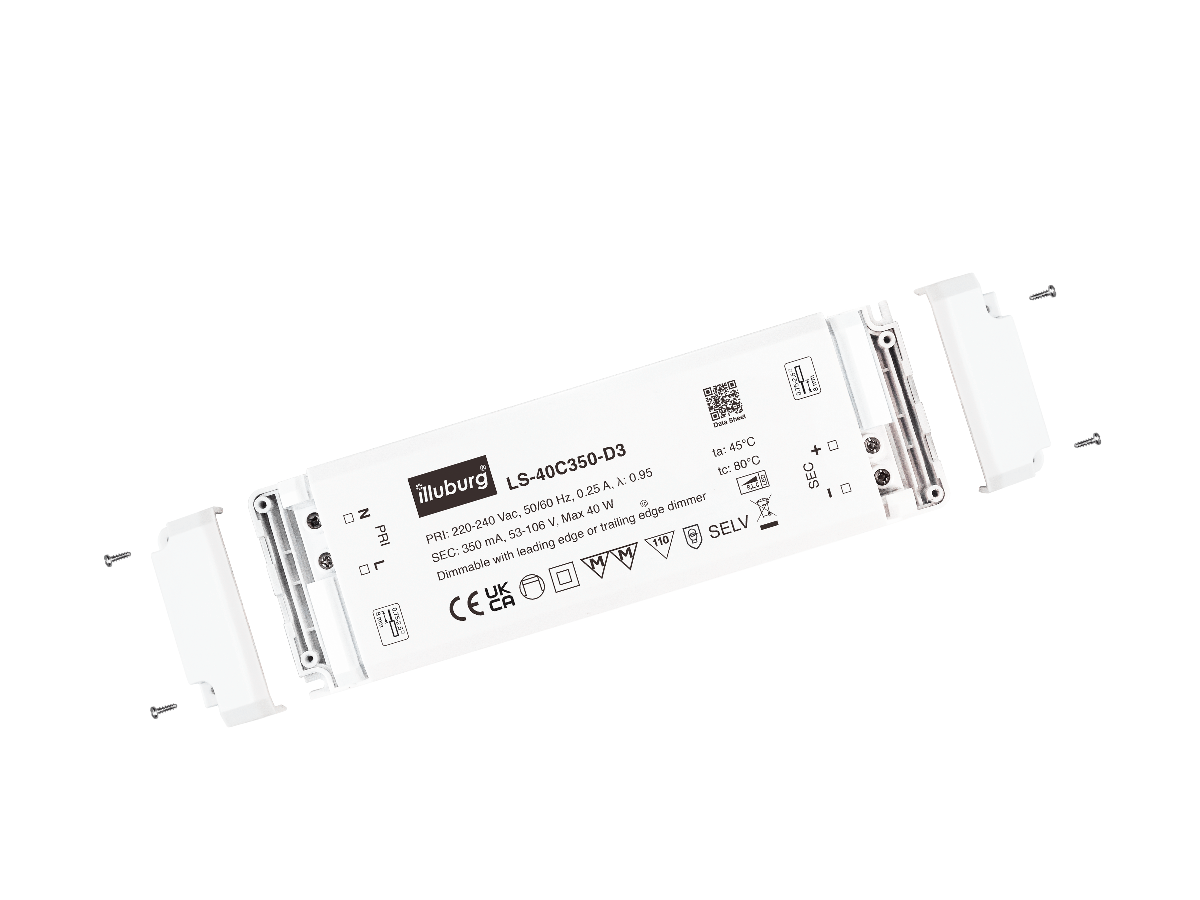

Connection
